High Accuracy Electro - Dynamic Transportation Simulation Vibration Test For Lighting Fixture

Product Categories
ASLi (CHINA) TEST EQUIPMENT CO., LTD
Contact Now

High Accuracy Electro - Dynamic Transportation Simulation Vibration Test For Lighting Fixture

Brand Name : ASLI

Model Number : ES-50

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per year

Delivery Time : 55 workdays

Packaging Details : wooden case

sine force : 5000kg.f

acceleration : 1000m/s2

max. speed : 1.8m/s

frequency : 5 Hz to 2700Hz

moving coil weight : 50kg

application : Lighting Fixture

Contact Now

High Accuracy Electro-Dynamic Transportation Simulation Vibration Test for Lighting Fixture
Product Description

High Accuracy Electro-Dynamic Transportation Simulation Vibration Test for Lighting Fixture is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products.Vertical and horizontal vibrations test can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized,. There is no need for additional foundation in most of the cases

ASLI can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Model
Rated Sine Force (N)
Rated Random
Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil (Kg)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450

Vibration Test for Lighting Fixture Features:

1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

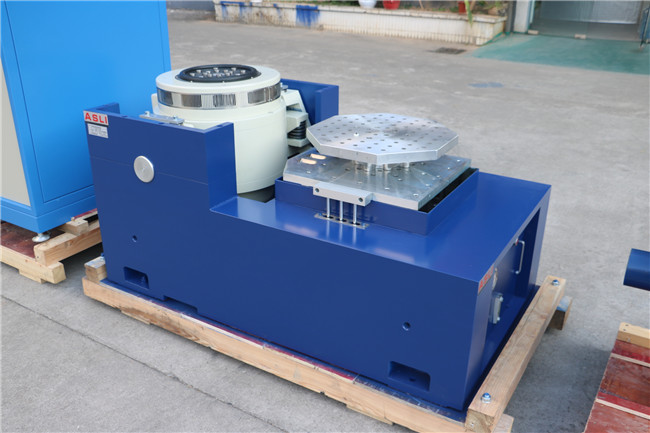

High Accuracy Electro - Dynamic Transportation Simulation Vibration Test For Lighting Fixture

For Vertical Expander:

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

High Accuracy Electro - Dynamic Transportation Simulation Vibration Test For Lighting Fixture

For Horizontal Expander:

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

High Accuracy Electro - Dynamic Transportation Simulation Vibration Test For Lighting Fixture
